CNC dust collection and coolant

Chip and dust control is budgeted as an accessory and behaves like a requirement. Wood dust is a respiratory and fire hazard, and aluminium without lubricant welds itself to the cutter.

What you need follows entirely from what you cut, and the two answers barely overlap.

Request a quote for cnc dust collection and coolant

What we check before you pay

Wood and MDF: extraction, not a shop vacuum

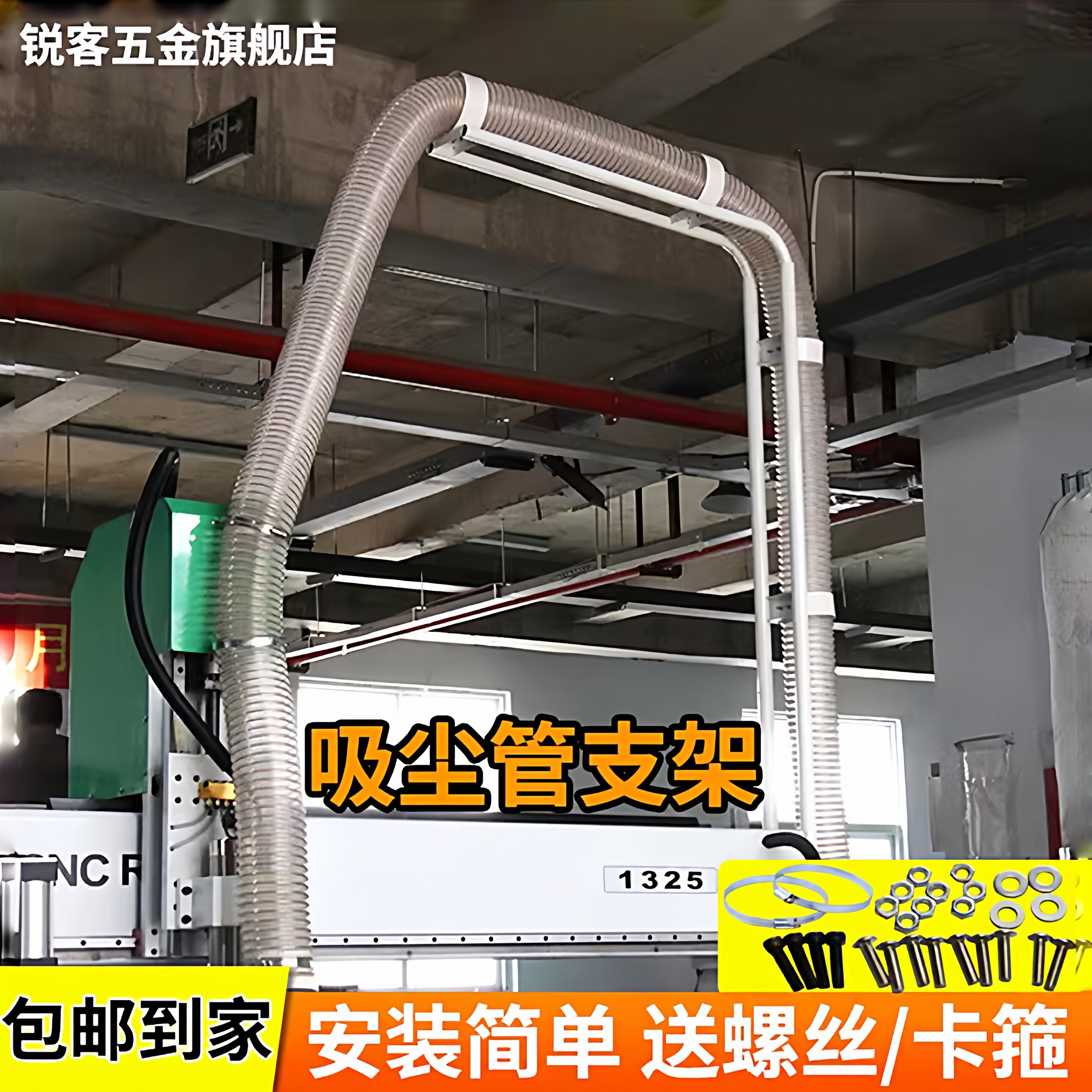

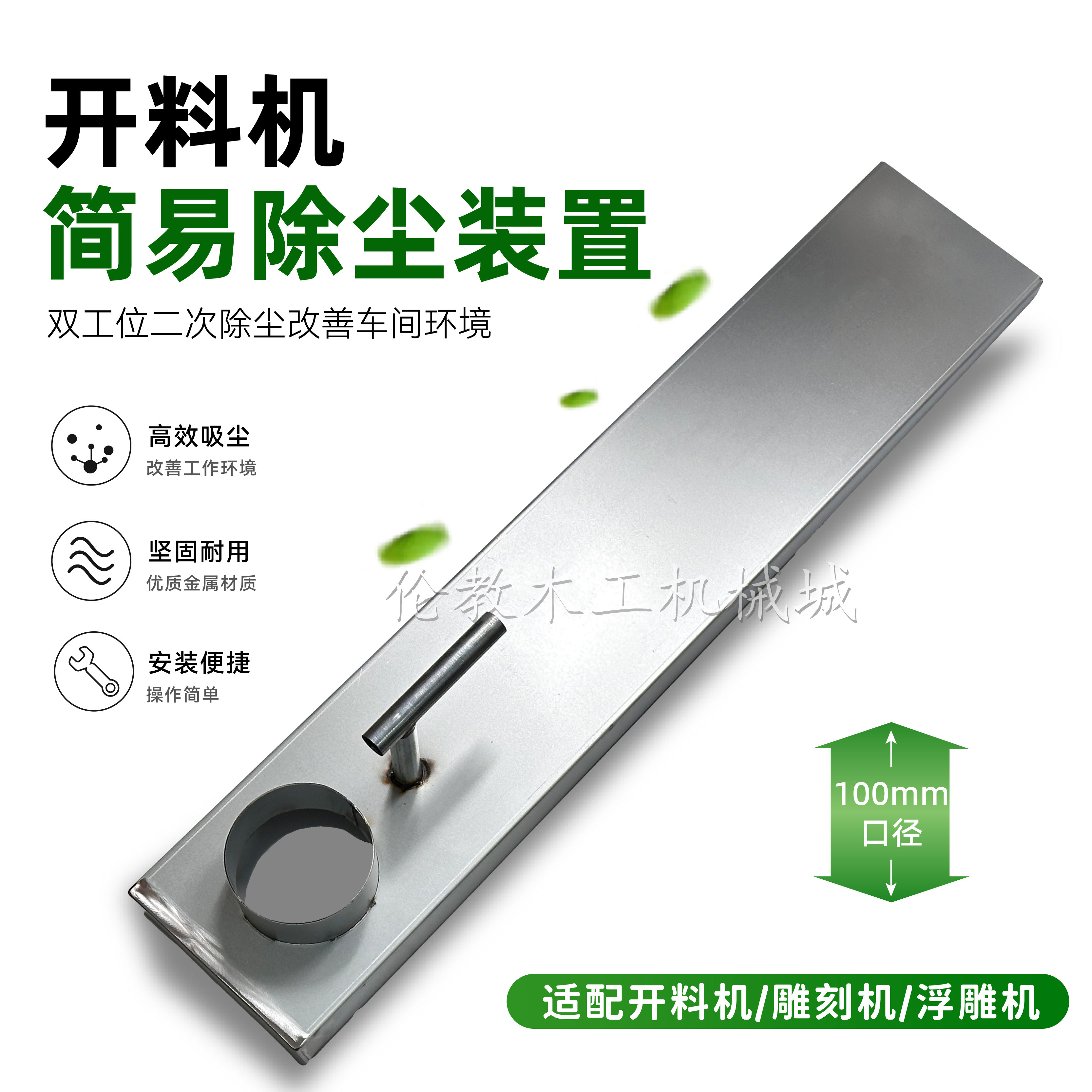

A dust shoe plus a real extractor keeps fine dust out of the air and out of the ballscrews. A household vacuum clogs, overheats and passes the finest fraction straight through, which is the fraction that matters.

Aluminium: lubricant changes everything

A mist of coolant, or even WD-40 on a brush, stops the chip re-welding into the cut. It is the single change that most often turns aluminium from difficult into routine, and it costs very little.

Mist means enclosure

Mist systems put oil into the air and over everything nearby. Budget the enclosure with the mist system rather than discovering the need afterwards.

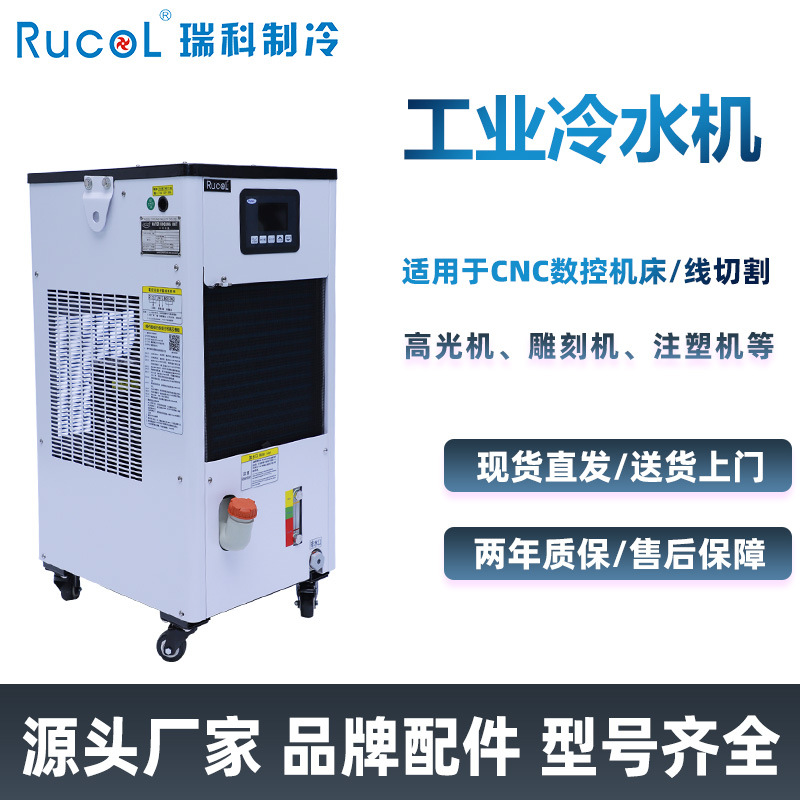

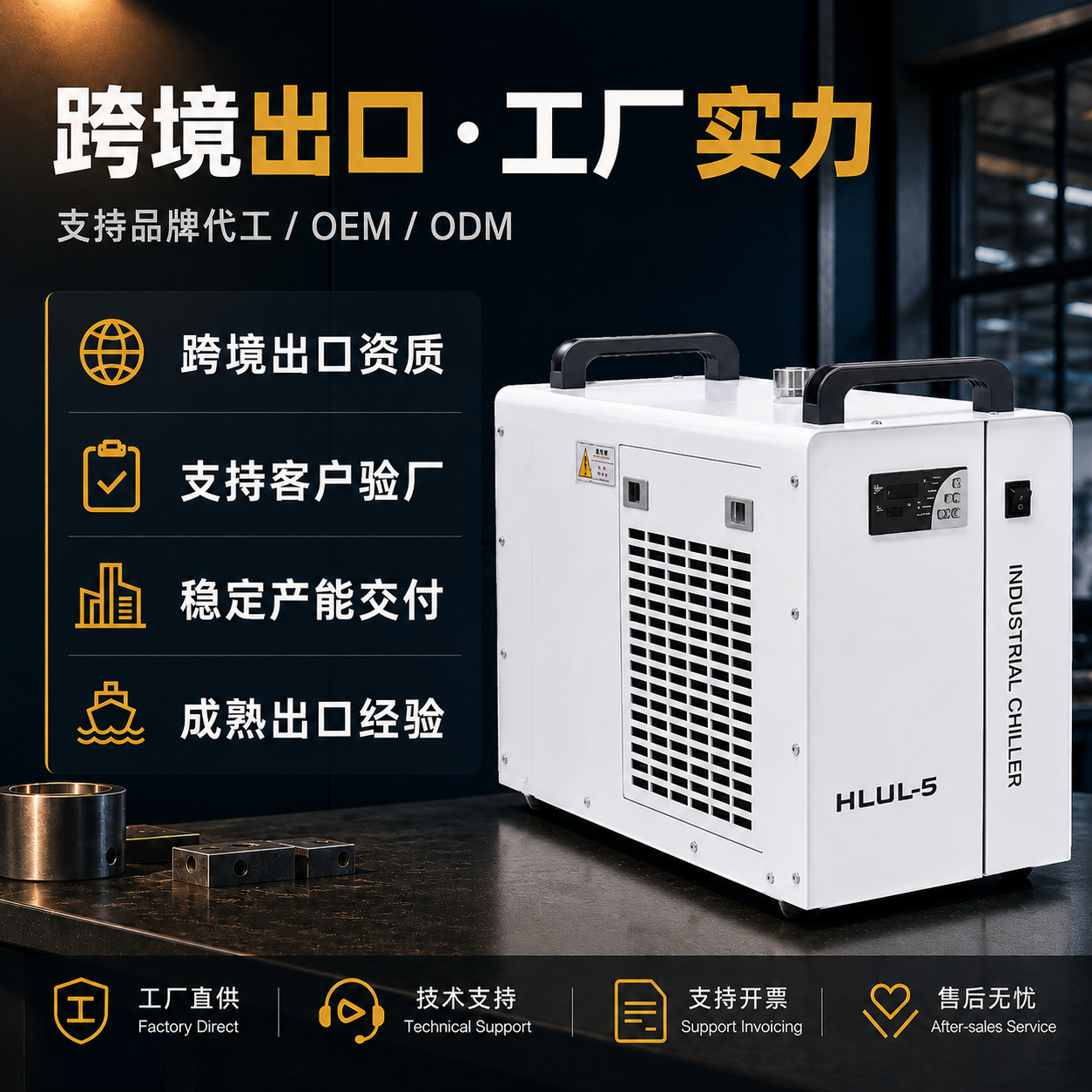

Water-cooled spindles need a loop, and sometimes a chiller

A pump and a bucket is enough for short jobs in a cool room. Long metal cuts in summer want a chiller, and running a water-cooled spindle on a warm stagnant bucket is how bearings die early.

Chips in the drive train are the quiet damage

Swarf that reaches an unprotected ballscrew or rail block grinds it. Way covers and a brush seal are cheap next to a replacement screw.

Extraction is a workplace question too

Where the machine goes into a business rather than a garage, wood dust exposure is regulated, and the extractor is part of that answer rather than a convenience.

Wood dust — US OSHA safety and health topics

How an order runs

  1. Material decides the branch Wood means extraction. Metal means lubricant and chip control. Both means both, and we will say so.
  2. Where the machine lives A spare room, a garage and a workshop lead to different answers about noise, air and mess.
  3. Specification in writing Airflow and filtration class for extractors, pump rating and hose sizes for coolant, chiller capacity against your duty cycle.
  4. Fit checked against the machine Dust shoe diameter to spindle mount, hose to port, chiller fittings to spindle.
  5. Quote and approval Itemised, including the enclosure where a mist system makes one necessary.
  6. Ship consolidated Bulky but light; it travels with the machine rather than alone.

What dust and coolant actually cost

160 listings read on 2026-09-22, sorted into the three ways you can buy. The price bands below are computed over all of them; the items further down are a spread across each band so you can see the range rather than only the cheap end.

Wholesale · 1688

$29.87median · $6.27–$224 middle half

144 listings

Bought by the batch. Lowest unit price, and the seller expects a business buyer.

Retail · Taobao

$26.58median · $11.95–$60.93 middle half

16 listings

Single units, consumer packaging, and a price that already carries a retail margin.

Ex-works prices in US dollars, converted at 6.696 CNY per USD on 2026-09-22. They exclude our fee, crating, freight and duty — the quote form prices those. We do not hold stock; these are live supplier listings and any one of them can go out of stock or change price between collections.
